Each model was generated in Nuit and exported without touching up. Download the IFC4, DXF or GLB, open it in Revit, Archicad, AutoCAD or SketchUp, and judge the file — not the screenshot.
Rocky lake shore, among pines
3 files to download

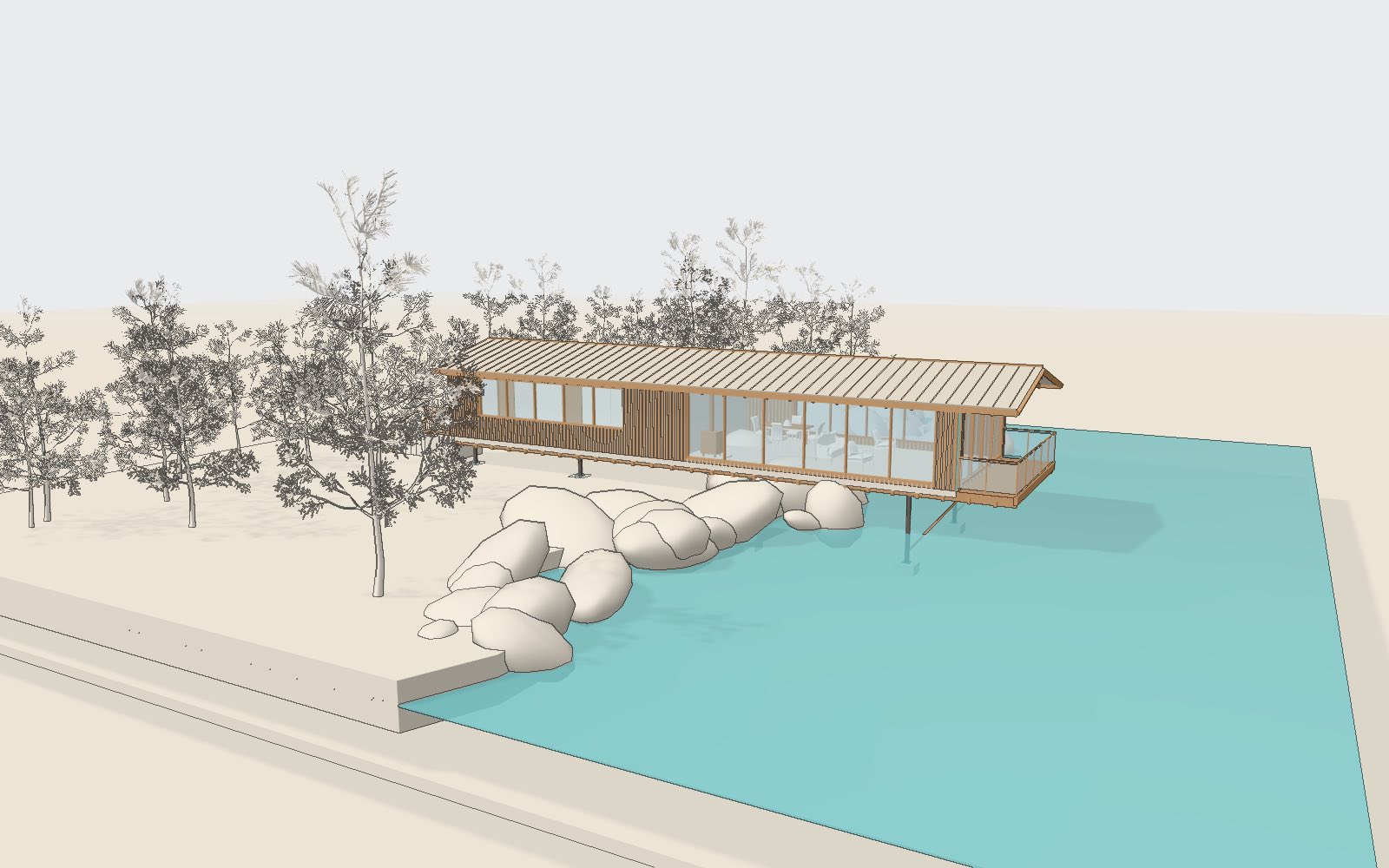

A long single-storey house in charred larch under a low gable roof, its living end carried out over the lake on slender steel columns — five rooms, a lake terrace, furnished.
- IFC4 7.2 MB Revit, Archicad, BIMcollab, any IFC viewer
- DXF 1.6 MB AutoCAD, Archicad, any CAD
- GLB 2.3 MB SketchUp, Blender, 3ds Max, any glTF viewer
The 24 library pines (27,000 triangles each) are in the GLB but left out of the IFC, as before; the DXF now carries them and the library furniture as silhouette outlines, on layers L-PLNT and I-FURN. Otherwise exported as-is from the studio. Export is available once your account has made a purchase — terms §6.4.
What was asked
An elongated single-storey house on a rocky lake shore, as in the reference images: a long narrow volume with a low gable roof, its lake end cantilevered over the water on slender steel columns. About 120 m²: an open living room with kitchen at the lake end, a main bedroom, a second bedroom, a bathroom and an entrance hall at the land end. Plot 40×40 m with the lake, rocks and pines.
How it was built
- House 20 × 6 m; floor 1.4 m above the water, wall height 2.7 m, charred-timber cladding on a 150 mm module
- Gable roof at 14°, standing seam at 460 mm centres, 0.5 m eaves — extended 1.8 m out over the lake
- Steel columns 120 mm on concrete pads, lake support line at 8.5 m, diagonal braces to the girders
- Lake terrace 3.8 m deep in the first edit (“Before”), 1.8 m under the extended roof in the final; glass guard 1.05 m
From the model’s own parameters — every one of these is a slider in the studio.
What is in the IFC4 file1079 elements
- Spaces (rooms)with area
- 5
- Walls
- 12
- Slabs and roof decks
- 16
- Roof elements
- 2
- Columns
- 12
- Beamsrafters, ridge, joists, eaves beams, roof seams
- 205
- Membersframes, mullions, post shoes
- 103
- Platescolumn base plates
- 8
- Footings
- 9
- Windowsglass, frames and transoms count separately where the model tags them so
- 5
- Doorsglass, frames, track and handles count separately where the model tags them so
- 7
- Stairs
- 6
- Railing partshandrails, posts, balusters, glass guards
- 45
- Coverings
- 566
- Furniturelibrary assets
- 12
- Light fixtures
- 2
- Site elementswater, banks, rocks, margins
- 57
- Untyped elements
- 7
Counted in the exported file at build time. Spaces: Bathroom 11.8 m², Second bedroom 13.9 m², Main bedroom 13.9 m², Entrance hall 14.1 m², Living room + open kitchen 56.8 m². 12 wall openings carry their IfcRelVoids / IfcRelFills relations. DXF: 7 sheets (Plan, Elevation North, Elevation South, Elevation East, Elevation West, Section X, Section Z) on 19 layers.
River Thames, Marlow
3 files to download

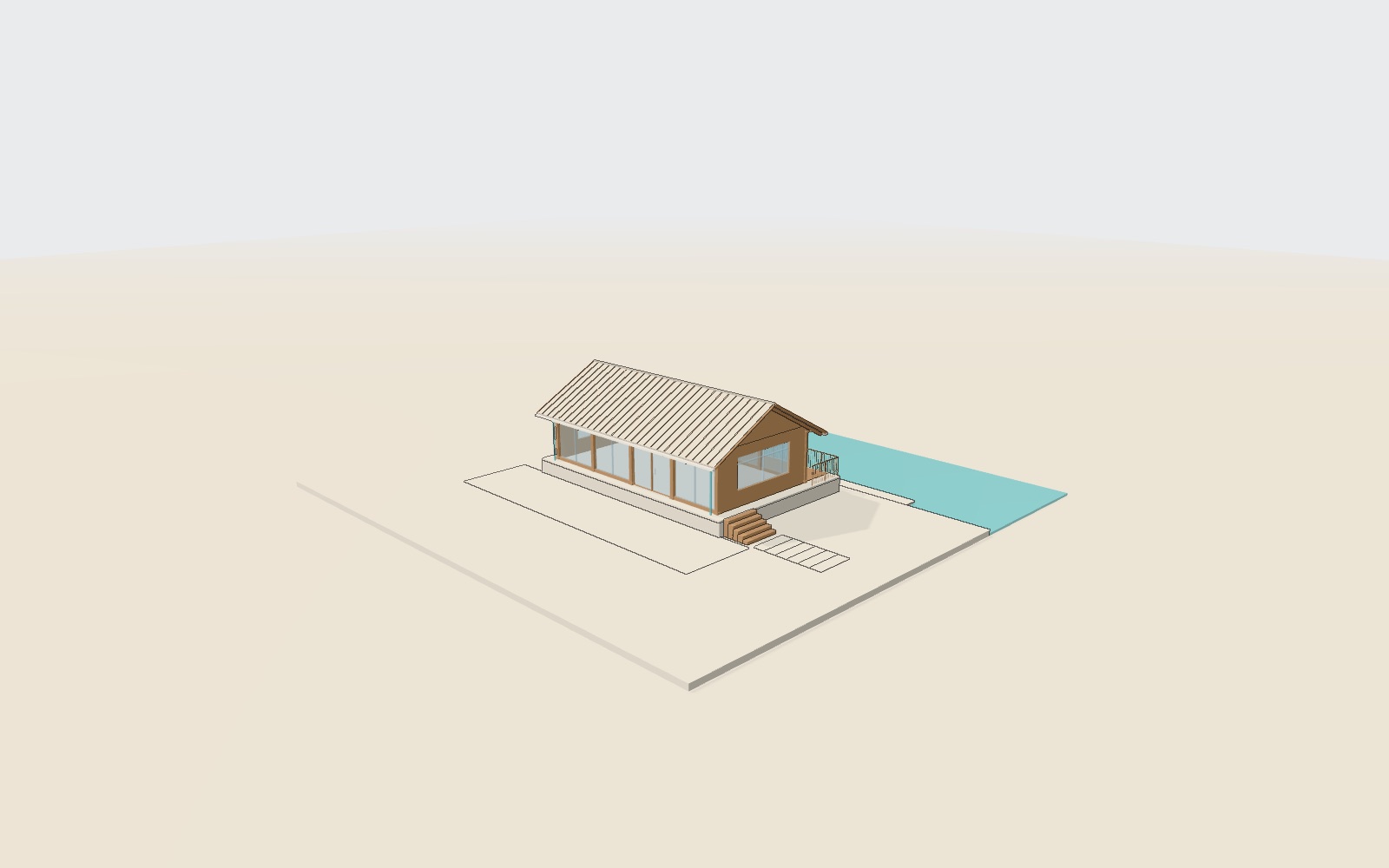

A single-room timber pavilion on a stone plinth at the water’s edge, with a copper roof and a deck over the river.
- IFC4 654 KB Revit, Archicad, BIMcollab, any IFC viewer
- DXF 695 KB AutoCAD, Archicad, any CAD
- GLB 864 KB SketchUp, Blender, 3ds Max, any glTF viewer
Exported as-is from the studio. Export is available once your account has made a purchase — terms §6.4.
What was asked
A boathouse pavilion on the Thames at Marlow: one raised room in cross-laminated timber on a limestone plinth, a glulam portal frame with glazed bays to the river and a sliding entrance on each long side, a copper standing-seam gable roof with exposed rafters, an oak deck with a guardrail over the water, an arrival stair and gravel court on the land side, and reed beds along the bank.
The task as set, in our words — the prompt text was not kept with this model.
How it was built
- CLT walls 160 mm, glulam posts 200 mm, four bays
- Wall height 3.05 m, ridge rise 1.75 m, eaves overhang 0.85 m
- Copper standing seam at 480 mm centres
- Floor raised 0.85 m; terrace 2.1 m over the river
From the model’s own parameters — every one of these is a slider in the studio.
What is in the IFC4 file412 elements
- Spaces (rooms)with area
- 1
- Walls
- 18
- Slabs and roof decks
- 11
- Roof elements
- 5
- Columns
- 10
- Beamsrafters, ridge, joists, eaves beams, roof seams
- 104
- Membersframes, mullions, post shoes
- 10
- Footings
- 1
- Windowsglass, frames and transoms count separately where the model tags them so
- 64
- Doorsglass, frames, track and handles count separately where the model tags them so
- 22
- Stair flights
- 5
- Railing partshandrails, posts, balusters, glass guards
- 152
- Coverings
- 1
- Rainwater pipes and box gutters
- 4
- Site elementswater, banks, rocks, margins
- 4
Counted in the exported file at build time. Space: Boathouse pavilion 71.0 m². 2 wall openings carry their IfcRelVoids / IfcRelFills relations. DXF: 7 sheets (Plan, Elevation North, Elevation South, Elevation East, Elevation West, Section X, Section Z) on 18 layers.
Your project, the same way.
Open the studioA model from a brief is 60–150 credits, a prompt edit 5–25; sliders, plans and sections are free; export comes with any plan or credit pack.
